Graphtol Bordeaux HF3R

Pigment Violet 32

Graphtol Bordeaux HF3R is a brilliant bordeaux pigment with high color strength, good lightfastness and excellent dielectric properties. Particularly suitable for films, cable sheathing and as a replacement for thioindigo pigments.

Key Features

  • High color strength, High transparency

Key Applications

Product Data

Physicaland Chemical Properties
Density [g/CM3] 1.78
Bulk volume [l/kg] 5.4
Average particle size [nm] 155
Alkali resistance 5
Acid resistance 5
Specific surface [m2/g] 44
Fastness Properties
PE PP PVC PS ABS PC
SD 1/3 [g/kg] 1.0 1.3 3.6 - - -
Hue angle [°] 342.1 341.8 336.5 - - -
Chroma 43.5 41.0 48.0 - - -
Light fastness (Full shade) 7 7 7-8 - - -
Light fastness (Reduction) 6 6-7 7 - - -
Heat resistance [°C] 250 250 - - - -
Weathering fastness - - - - - -
Additional Technical Properties
Suitable for low warping applications Not suitable
Cable sheathing Suitable
Fastness to bleeding in PVC-P 5

Applications

Suitable Limited suitability Not suitable
PVC PO PS/ ABS
PUR Rubber PC
PAN Fiber POM
PA
PBT
PP Fiber
PET Fiber
PA Fiber

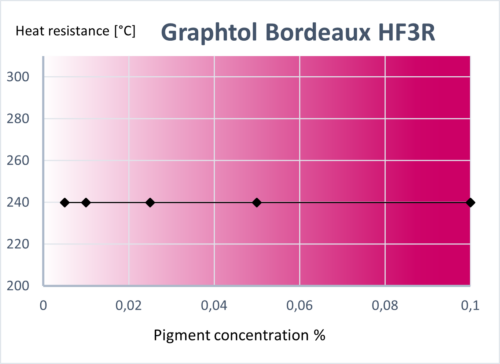

Limiting concentration in HDPE

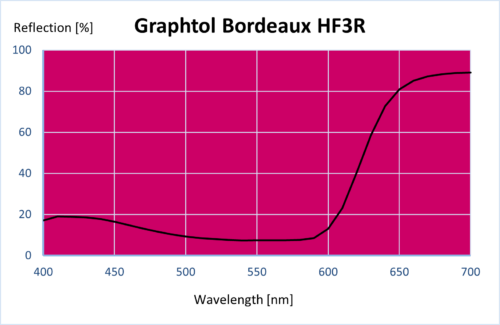

Reflection curve
