Graphtol Fire Red 3RLP

Pigment Red 48:3

Graphol Fire Red 3RLP is an economical bluish red pigment with excellent dispersibility. It is suitable for the mass coloration of films and PP fibres, also recommended for cable applications, injection and blow moulding.

Key Features

  • Excellent dispersability

Key Applications

Product Data

Physicaland Chemical Properties
Density [g/CM3] 1.80
Bulk volume [l/kg] 6.2
Average particle size [nm] 208
Alkali resistance 5
Acid resistance 5
Specific surface [m2/g] 28
Fastness Properties
PE PP PVC PS ABS PC
SD 1/3 [g/kg] 2.0 2.3 7.5 2.3 - -
Hue angle x [g/kg] 10.5 11.8 12.0 10.6 - -
Chroma 52.8 53.7 58.5 53.6 - -
Light fastness (Full shade) 7 6-7 6-7 6 - -
Light fastness (Reduction) 6 6 5-6 4-5 - -
Heat resistance [°C] 240 240 - 250 - -
Weathering fastness - - - - - -
Additional Technical Properties
Suitable for low warping applications Limited suitability
Cable sheathing Suitable
Fastness to bleeding in PVC-P 5

Applications

Suitable Limited suitability Not suitable
PO ABS PC
PVC/ Rubber PAN Fiber POM
PS PA
PUR PBT
PP Fiber PET Fiber
PA Fiber

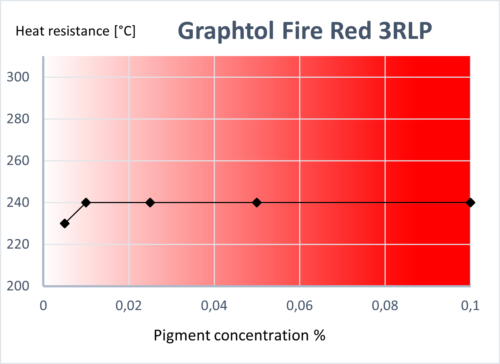

Limiting concentration in HDPE

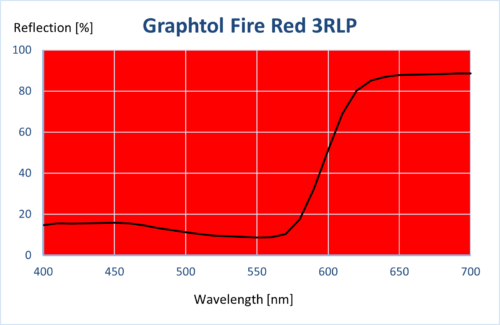

Reflection curve
