Graphtol Red F5RK

Pigment Red 170

Graphtol Red F5RK is a very strong and brilliant bluish red pigment with very good lightfastness and high transparency.

Key Features

  • Good light fastness benefit
  • High color strength

Key Applications

Product Data

Physicaland Chemical Properties
Density [g/CM3] 1.37
Bulk volume [l/kg] 3.9
Average particle size [nm] 211
Alkali resistance 5
Acid resistance 5
Specific surface [m2/g] 27
Fastness Properties
PE PP PVC PS ABS PC
SD 1/3 [g/kg] 1.7 2.2 - - - -
Hue angle [°] 8.4 11.8 - - - -
Chroma 52.6 52.3 - - - -
Light fastness (Full shade) 7-8 8 - - - -
Light fastness (Reduction) 7 7-8 - - - -
Heat resistance [°C] 250 250 - - - -
Weathering fastness - - - - - -
Additional Technical Properties
Suitable for low warping applications Limited suitability
Cable sheathing Not suitable
Fastness to bleeding in PVC-P -

Applications

Suitable Limited suitability Not suitable
PO PVC/ Rubber
PP Fiber PS/ ABS
PAN Fiber PC
POM
PA
PBT
PUR
PET Fiber
PA Fiber

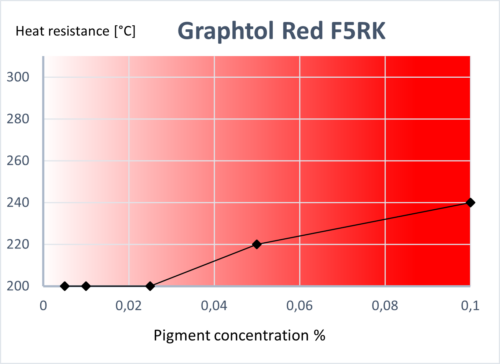

Limiting concentration in HDPE

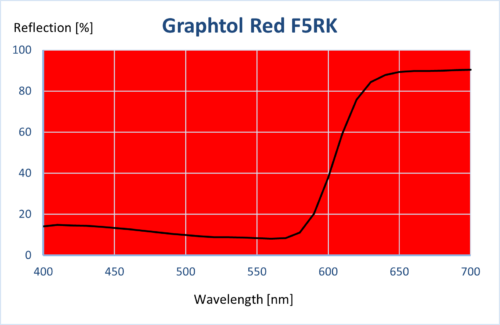

Reflection curve
