Graphtol Red HFG

Pigment Orange 38

Graphtol Red HFG is a yellowish red pigment with good fastness properties. In combination with PV Fast Yellow HR 02 or PV Fast Yellow HGR it is possible to match brilliant orange color shades with good light fastness.

Key Features

  • Highly transparent

Key Applications

Product Data

Physicaland Chemical Properties
Density [g/CM3] 1.45
Bulk volume [l/kg] 7.4
Average particle size [nm] 155
Alkali resistance 5
Acid resistance 5
Specific surface [m2/g] 67
Fastness Properties
PE PP PVC PS ABS PC
SD 1/3 [g/kg] 2.3 3.5 8.9 - - -
Hue angle [°] 31.0 34.3 33.4 - - -
Chroma 63.5 62.1 66.1 - - -
Light fastness (Full shade) 7 7 8 - - -
Light fastness (Reduction) 6 7 6-7 - - -
Heat resistance [°C] 280 280 - - - -
Weathering fastness - - - - - -
Additional Technical Properties
Suitable for low warping applications Limited suitability
Cable sheathing Not suitable
Fastness to bleeding in PVC-P 4

Applications

Suitable Limited suitability Not suitable
PO PUR PS/ ABS
PVC PP Fiber PC
Rubber POM
PA
PBT
PET FIber
PA Fiber
PAN Fiber

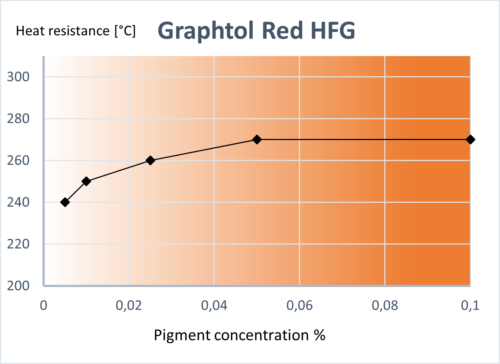

Limiting concentration in HDPE

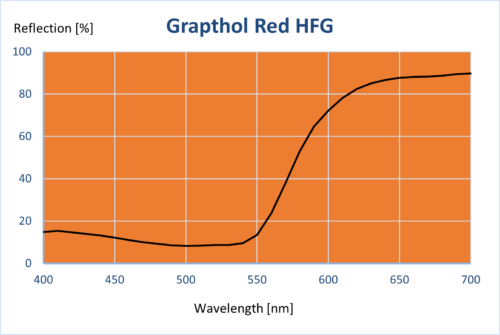

Reflection curve
