Graphtol Yellow GG

Pigment Yellow 17

Graphtol Yellow GG is avery strong, pure and cost effective green shade yellow pigment with excellent dielectric properties. It is not recommended for processing temperatures above 200°C .

Key Features

  • High color strength, Very economical

Key Applications

Product Data

Physicaland Chemical Properties
Density [g/CM3] 1.39
Bulk volume [l/kg] 4.0
Average particle size [nm] 45
Alkali resistance 5
Acid resistance 5
Specific surface [m2/g] 63
Fastness Properties
PE PP PVC PS ABS PC
SD 1/3 [g/kg] 1.1 - 4.2 - - -
Hue angle [°] 94.7 - 94.3 - - -
Chroma 79.1 - 78.2 - - -
Light fastness (Full shade) 6-7 - 7 - - -
Light fastness (Reduction) 5-6 - 6-7 - - -
Heat resistance [°C ] 200 - - - - -
Weathering fastness - - - - - -
Additional Technical Properties
Suitable for low warping applications Not suitable
Cable sheathing Suitable
Fastness to bleeding in PVC-P 3

Applications

Suitable Limited suitability Not suitable
PVC PO PS
Rubber PUR ABS
PAN FIber PC
POM
PA
PBT
PP Fiber
PET Fiber
PA Fiber

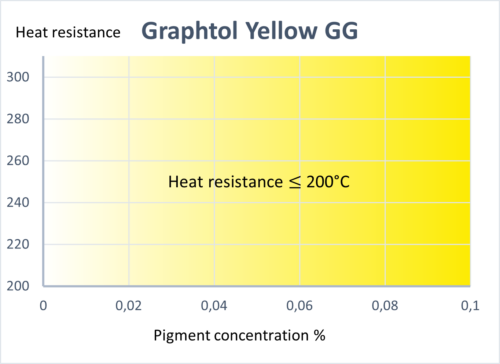

Limiting concentration in HDPE

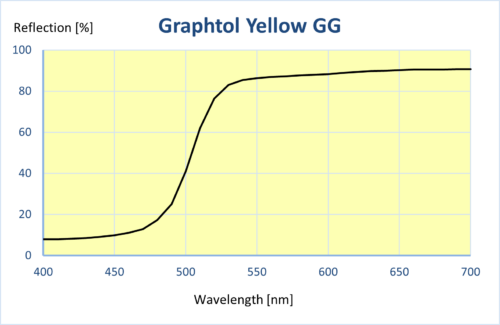

Reflection curve

Disclaimer - The application information and any other information given in this document as well as our product specifications is based on the present state of our knowledge and is intended as a general description of our products and their possible applications. They are non-binding and cannot be taken as a guarantee. Because of the multitude of formulations, production & application conditions, all the above-mentioned data must be adjusted to the circumstances of the customer. As their use lies beyond our knowledge and control, we cannot accept any liability relating to the use of our products in particular applications. No liabilities, including those for patent rights, can be derived from this fact for individual cases. In addition to that, the legal rights of third parties must always be considered. Any customer of this product is responsible for determining the suitability of our products for its particular application and to ensure that any proprietary rights and existing laws and legislation are observed. Our recommendations about the use and processing of the products are of a general nature only and do not exempt the customer from its duty to carry out appropriate testing regarding fitness of the products for customer’s particular purposes and processing conditions. We do not make any warranty with regard to fitness of the products to customer’s particular use or application and its particular conditions of processing.
