Graphtol Yellow H2R

Pigment Yellow 139

Graphtol Yellow H2R is ared shade yellow pigment with high color strength. Itcan be usedas a replacement for diarylide and lead chromate pigments. It is highly recommended for PP fiber applications.

Key Features

  • Excellent dispersability, High color strength, Diarylide replacement

Key Applications

Product Data

Physicaland Chemical Properties
Density [g/CM3] 1.63
Bulk volume [l/kg] 5.5
Average particle size [nm] 62
Alkali resistance 4
Acid resistance 5
Specific surface [m2/g] 55
Fastness Properties
PE PP PVC PS ABS PC
SD 1/3 [g/kg] 1.1 1.3 3.5 - - -
Hue angle [°] 75.8 75.0 77.1 - - -
Chroma 70.3 72.8 76.0 - - -
Light fastness (Full shade) 8 7 7 - - -
Light fastness (Reduction) 7-8 7 6-7 - - -
Heat resistance [°C] 240 260 - - - -
Weathering fastness - - - - - -
Additional Technical Properties
Suitable for low warping applications Limited suitability
Cable sheathing Limited suitability
Fastness to bleeding in PVC-P 5

Applications

Suitable Limited suitability Not suitable
PO Rubber PS/ ABS
PVC PUR PC
PP Fiber PAN Fiber POM
PA
PBT
PET Fiber
PA Fiber

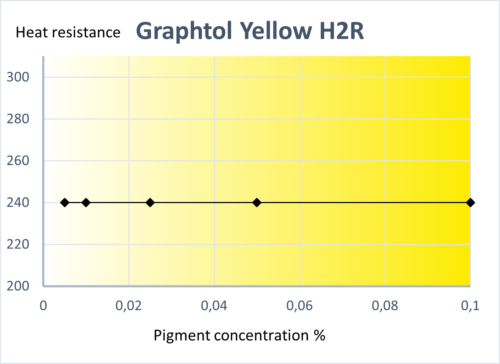

Limiting concentration in HDPE

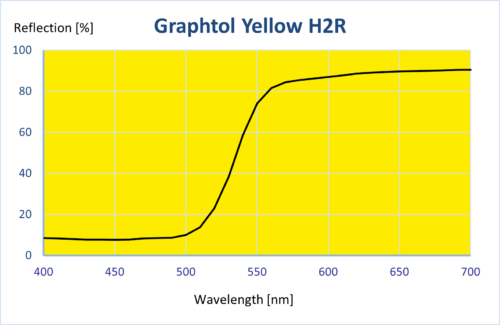

Reflection curve
