PV Fast Orange H4GL 01

Pigment Orange 72

PV Fast Orange H4GL 01 is a strong and brilliant yellow shade orange pigment with excellent light fastness and high heat stability.

Key Features

  • Excellent light fastness, Good outdoor stability, Unique yellowish orange shade

Key Applications

Product Data

Physicaland Chemical Properties
Density [g/CM3] 1.52
Bulk volume [l/kg] 5.0
Average particle size [nm] 109
Alkali resistance 5
Acid resistance 5
Specific surface [m2/g] 34
Fastness Properties
PE PP PVC PS ABS PC
SD 1/3 [g/kg] 2.0 2.4 5.7 2.3 2.4 -
Hue angle [°] 56.7 56.6 60.1 56.1 56.5 -
Chroma 74.4 73.7 76.5 73.3 73.0 -
Light fastness (Full shade) 8 8 7-8 8 8 -
Light fastness (Reduction) 7-8 8 7-8 8 8 -
Heat resistance [°C ] 290 290 - 300 290 -
Weathering fastness 4-5 - 3-4 - - -
Additional Technical Properties
Low warping applications Suitable
Cable sheathing Limited suitability
Fastness to bleeding in P-PVC 5

Applications

Suitable Limited suitability Not suitable
PO PC
PVC/ Rubber PA
PS/ ABS PBT
POM PET
PUR PET Fiber
PP Fiber PA Fiber
PAN Fiber

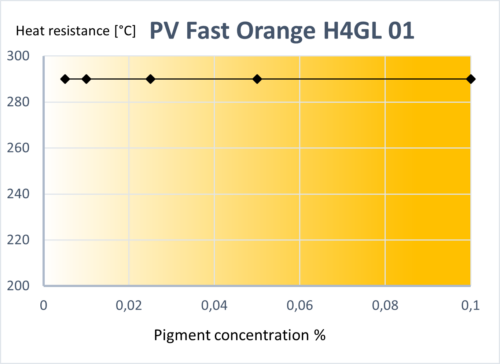

Limiting concentration in HDPE

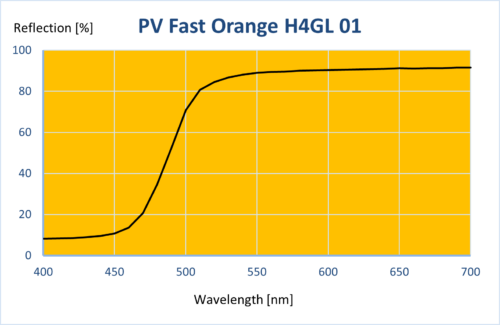

Reflection curve
